Advanced Deep Learning Model Enhances Defect Detection in Solar Panels

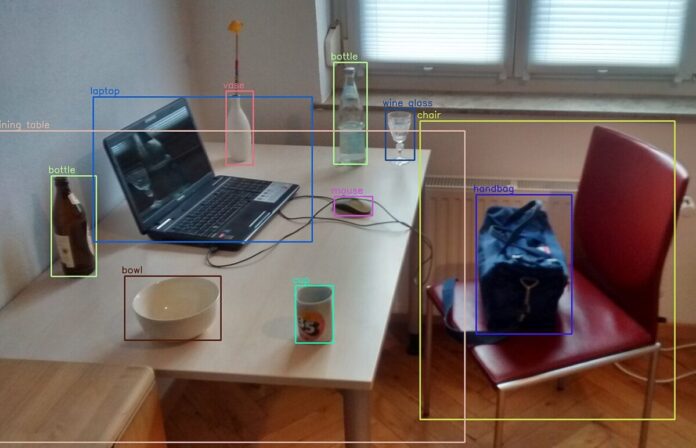

Innovators in China have introduced a cutting-edge deep learning framework designed to identify defects in photovoltaic (PV) panels with remarkable precision. This model leverages a streamlined algorithm known as “You Only Look Once” (YOLO), which efficiently processes data through a single forward pass in the neural network to generate predictions.
Innovative Approach Using Visible-Light Imaging
The newly developed system utilizes high-resolution visible-light images to detect various types of panel defects, including dust accumulation, cracks, and bird droppings. By integrating two convolutional neural network backbones with a hybrid attention transformer within a partial bottleneck architecture, the model significantly enhances feature extraction capabilities.
Architectural Enhancements for Superior Performance
Building upon the YOLOv8 framework, the researchers introduced a novel HAT-C2f module that refines the backbone’s ability to capture intricate details. In the neck section of the network, the traditional C2f module was replaced with RepNCSPELAN4, an optimized layer design featuring tailored channel sizes, convolutional operations, and repetition patterns. Additionally, an SKAttention mechanism was incorporated before the detection head to improve adaptability across varying object scales.
Comprehensive Evaluation and Benchmarking
The model, termed YOLO HRS, was rigorously tested on a dataset comprising 6,500 visible-light images sourced from a prominent data science platform. These images were categorized into four defect classes: clean, dusty, cracked, and bird droppings. Approximately 80% of the dataset was allocated for training, with the remainder reserved for validation purposes.
YOLO HRS was benchmarked against previous YOLO versions and leading object detection algorithms. Ablation studies were conducted to assess the impact of individual components on overall performance.
Outstanding Accuracy and Precision Metrics
Results demonstrated that YOLO HRS achieved an accuracy rate of 86.87%, a recall of 84.6%, and a mean average precision (mAP) of 88.98% at an Intersection over Union (IoU) threshold of 0.5. The model also attained a [email protected] score of 77.08%, outperforming comparable algorithms.
In comparative tests, only YOLOX approached YOLO HRS’s performance with an [email protected] of 85.59%. Other models such as RT-DETR and Faster-RCNN scored 79.34%, while NanoDet and RetinaNet lagged behind with scores around 66-69%. Notably, YOLO HRS surpassed the baseline YOLOv8 by a 3% margin in [email protected]
Future Directions: Expanding Capabilities and Efficiency
The research team plans to further refine YOLO HRS by enhancing its architecture and validating its effectiveness across diverse imaging modalities, including infrared and electroluminescence. This expansion aims to broaden the model’s applicability in various operational environments.
Efforts will also focus on developing lightweight network structures that incorporate innovative down-sampling and feature extraction techniques, striking a balance between accuracy and computational efficiency. Additionally, exploring self-supervised learning and cross-domain applications could reduce reliance on extensive labeled datasets, accelerating deployment in real-world scenarios.
Implications for Solar Panel Maintenance and Industry Impact
Accurate and reliable defect detection is critical for maintaining the efficiency and longevity of solar panels. The YOLO HRS model offers a promising solution that can streamline inspection processes, reduce maintenance costs, and ultimately enhance the performance of solar energy systems worldwide. With solar power capacity expected to grow by over 20% annually through 2030, such advancements are vital for supporting sustainable energy infrastructure.
